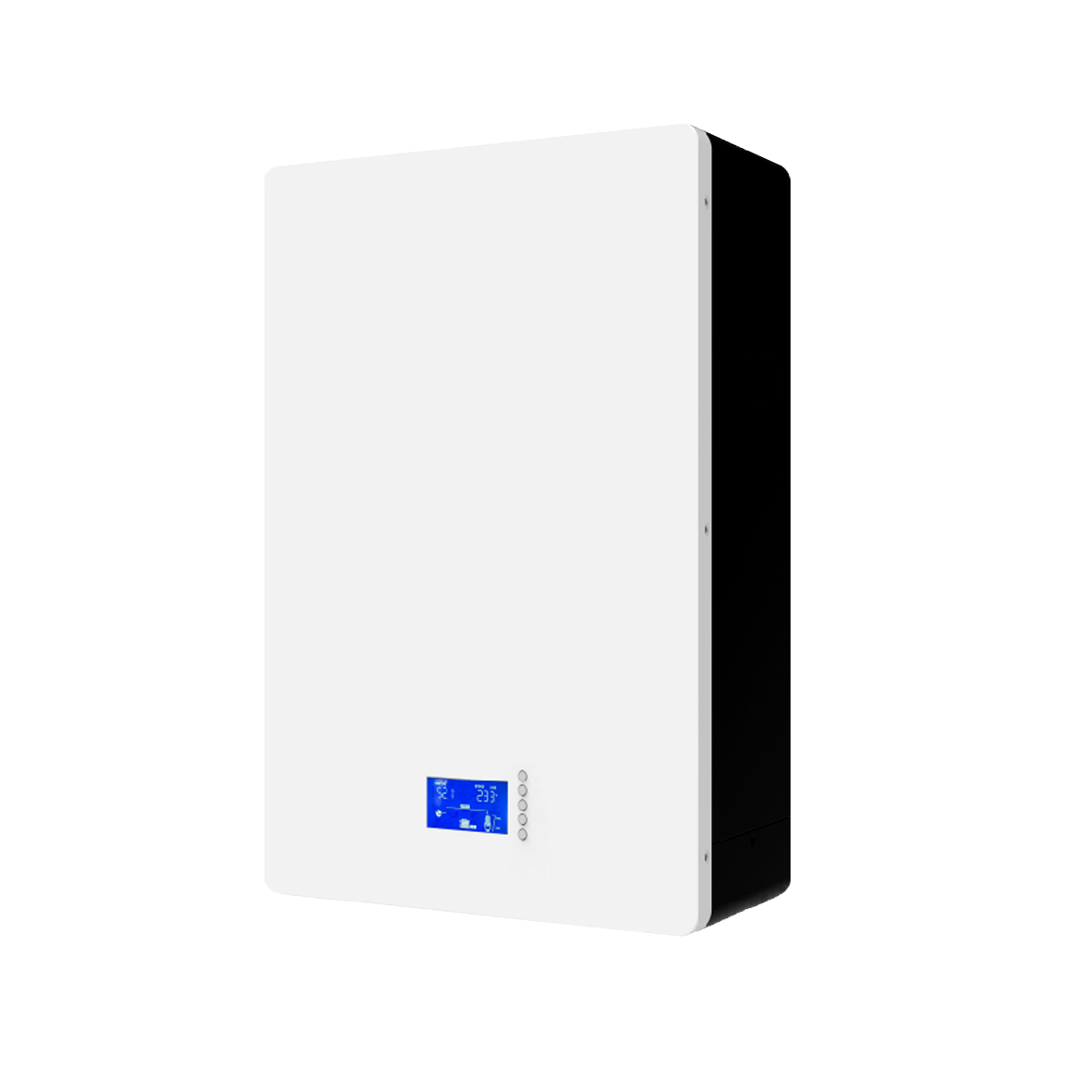

51.2V 100Ah 5kwh Wall-mounted Home Storage Solar Energy Systems
Flexible capacity expansion on demand: support 10 in parallel to expand capacity to meet different specifications of electricity demand；
Compact design, small footprint, easy installation；
Communication supports CAN, RS485, RS232 ;
Integrated design, beautiful green products, non-toxic and non-polluting.
|
Product model |
SP-B100S16 |
|
Cell type |
LFP cylindrical battery |
|
Cell specifications |
3.2V 50Ah |
|
Number of battery modules |
Support 1~8 parallel connections |
|
Rated capacity |
100Ah |
|
Rated total energy |
5.12kWh (Single) |
|
Rated voltage |
51.2V |
|
Electrical parameters |
|
|
Voltage range |
43.2~58.4V |
|
Standard charge current |
0.5C@ lasts |
|
Maximum charge current |
1C@ pulse |
|
Standard discharge current |
0.5C@ lasts |
|
Maximum discharge current |
1C@ pulse |
|
Structural parameters |
|
|
Weight |
40kg (Single) |
|
Size (height * width * depth) |
700x500x145mm (Single) |
|
Protection class |
IP54 |
|
Cooling mode |
Free cooling |
|
Ambient temperature |
Charge:0℃~55℃ Discharge:-20℃~60℃ Storage:-10℃~45℃ |
|
Operating humidity |
5~95%，relative humidity |
|
Communication methods |
CAN, RS485，RS232 |
|
Alarm & Protection |
Yes |
|
LED status |
Alarm/Run/SOC |
|
Installation mode |
Wall-mounted |
